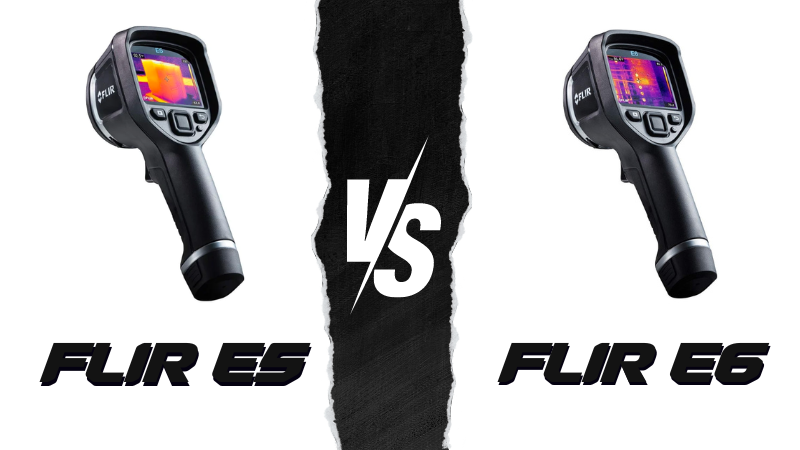

    FLIR E6-XT vs FLIR E5-XT Thermal Camera Comparison

    by Curtis Treloar January 09, 2024 2 min read

    FLIR E6-XT vs FLIR E5-XT Thermal Camera Comparison

    Comparing the FLIR E5-XT and FLIR E6-XT Thermal Camera



    Table of Contents

    • Introduction to Thermal Imaging Technology
    • FLIR E5-XT vs FLIR E6-XT Buying Guide
    • Feature Analysis and Use Cases
    • Choosing the Right FLIR Thermal Camera
    • Explore FLIR's Range of Thermal Imaging Cameras
    • Contact us

    Introduction to Thermal Imaging Technology

    Thermal imaging has been a game-changer across various sectors, enabling real-time temperature difference visualisation. This technology is pivotal for pre-emptive problem detection in fields like electrical/mechanical systems, building inspection, pest control, and facility maintenance. FLIR's thermal cameras, particularly the E5-XT and E6-XT models, stand out in the market for their reliability and performance.

    FLIR E5-XT vs FLIR E6-XT Buying Guide

    Specification FLIR E5-XT FLIR E6-XT
    IR Sensor Size 160x120 pixels 240x180 pixels
    Thermal Sensitivity 100mK 60mK
    Max Temperature 250°C 250°C
    Min Temperature -20°C -20°C
    Thermal Accuracy ±2°C or ±2% ±2°C or ±2%
    Field of View 45º x 34º 45º x 34º
    Frame Rate 9 Hz 9 Hz
    Screen Size 3-inch 3-inch
    MSX Technology Yes Yes
    Drop Test 2 meters 2 meters
    Ingress Protection IP54 IP54
    Wi-Fi Connectivity Yes Yes
    Battery Life 4 hours 4 hours
    Interchangeable Lenses No No
    Focus Type Fixed Fixed

    Feature Analysis and Use Cases

    The FLIR E5-XT, with its 160x120 IR sensor, offers a compact solution for routine inspections and basic fault detection. Its 100mK thermal sensitivity is adept for general applications like building inspections and moisture detection. The E5-XT is a cost-effective choice for professionals starting with thermal imaging.

    In contrast, the FLIR E6-XT's higher resolution of 240x180 pixels provides more detailed imaging, crucial for more demanding applications such as intricate electrical work or detailed mechanical inspections. Its enhanced thermal sensitivity of 60mK allows for better differentiation in temperature variations, making it suitable for more complex diagnostic tasks.

    Both models share features like a 45º field of view, MSX technology for enhanced image clarity, and a robust design, but the E6-XT's superior resolution and sensitivity make it a more versatile tool for a wider range of applications.

    Choosing the Right FLIR Thermal Camera

    The choice between the FLIR E5-XT and E6-XT depends on the specific needs and budget of the user. The E5-XT is an excellent entry-level camera, perfect for basic thermal imaging needs. For more advanced and detailed work, the E6-XT stands out with its higher resolution and sensitivity.

    Explore FLIR's Range of Thermal Imaging Cameras

    At Advanced Tools we offer a wide range of FLIR thermal imaging cameras, including the E5-XT and E6-XT. Browse our selection to find the perfect tool for your professional needs.

    Browse FLIR Thermal Imaging Camera's
