Lanyu TMR200 Digital Surface Roughness Gauge – Portable Precision Roughness Meter
SKU: LANYUTMR200
ra
$1,722.00 Excl. GST
$1,894.20 Incl. GST

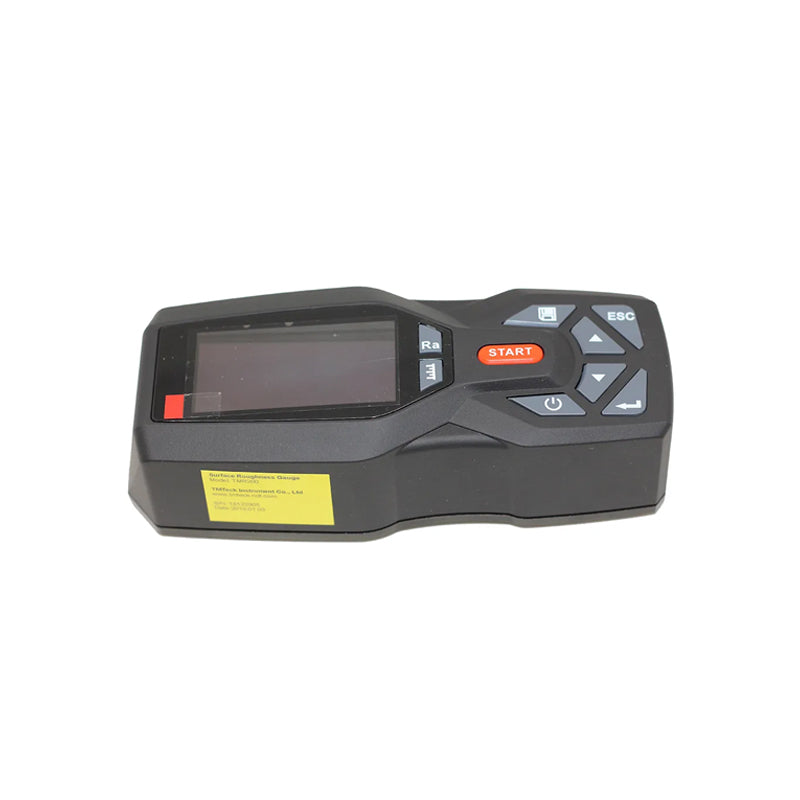

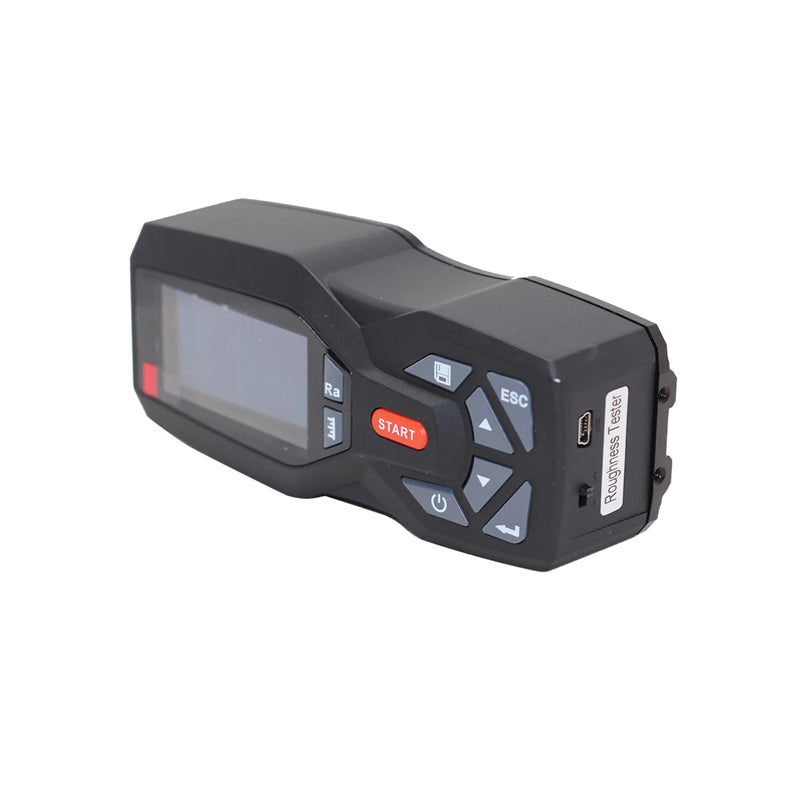

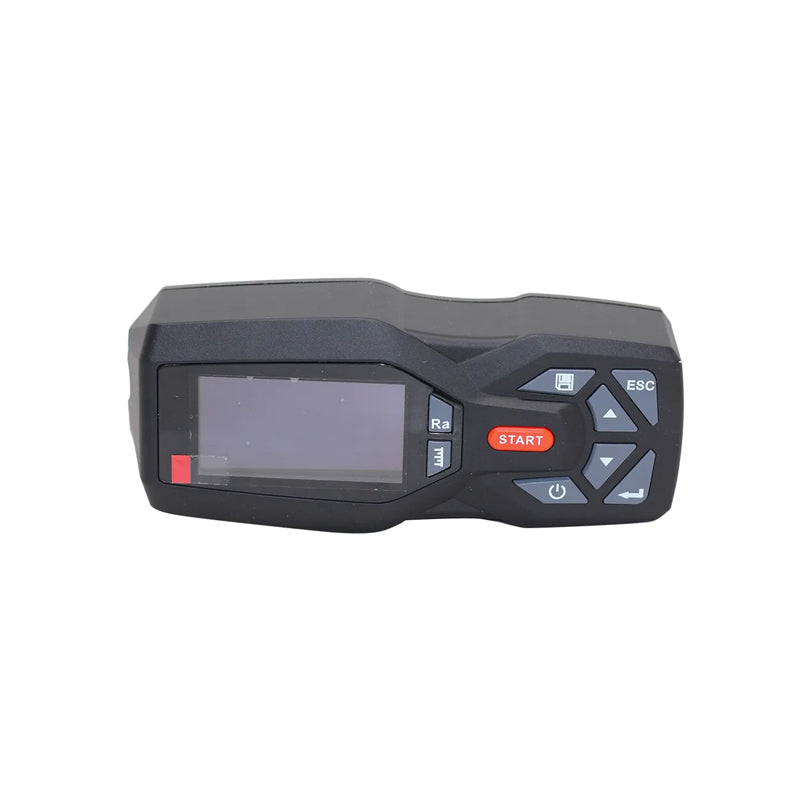

Lanyu TMR200 Digital Surface Roughness Gauge – Portable Precision Roughness Meter
The Lanyu TMR200 Surface Roughness Gauge is a rugged, precision-engineered portable instrument for measuring surface texture in industrial, workshop, and laboratory settings. Designed to meet international standards and deliver reliable, repeatable results, the TMR200 gauge is ideal for quality control, manufacturing inspection, and engineering applications. Its intuitive digital and graphic display, comprehensive data memory, and multiple parameter support make surface profiling fast and easy, while built-in connectivity ensures seamless reporting and analysis.
Lanyu TMR200 Key features
- Measures a wide range of surface roughness parameters including Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr & Rx.
- Four wave filtering methods: RC, PCRC, GAUSS and ISO13565 to meet diverse assessment needs.
- Large internal memory stores up to 100 groups of measured data and waveform profiles.
- Complies with ISO, DIN, ANSI and JIS national and international standards.
- Clear digital and graphic LCD display for easy reading of measurements.
- Can connect to a computer and printer for data transfer and reporting.
- Built-in lithium-ion rechargeable battery for portable use.
- Compact and robust design – ideal for field or shop-floor use.
Lanyu TMR200 Specifications
| Specification | Details |
|---|---|
| Measured Parameters | Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx |
| Measurement Range | Ra: 0.005 – 16.00 µmRz: 0.02 – 160 µm |
| Wave Filtering Methods | RC, PCRC, GAUSS, ISO13565 |
| Measurement Accuracy | ±10% (typical) |
| Repeatability | ≤6% |
| Cut-off Lengths | 0.25 mm / 0.8 mm / 2.5 mm |
| Evaluation Length | 1 – 5 cut-off lengths |
| Display | Digital & graphic LCD |
| Data Storage | Up to 100 measurement groups with waveform |
| Standards Compliance | ISO, DIN, ANSI, JIS |
| Connectivity | USB output for PC or printer |
| Power Supply | Built-in rechargeable lithium-ion battery |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | ≤90% RH |
| Dimensions (L × W × H) | Approx. 143 × 55 × 42 mm |
| Weight | Approx. 400 g |
