SKU: 0560 8681
![]()

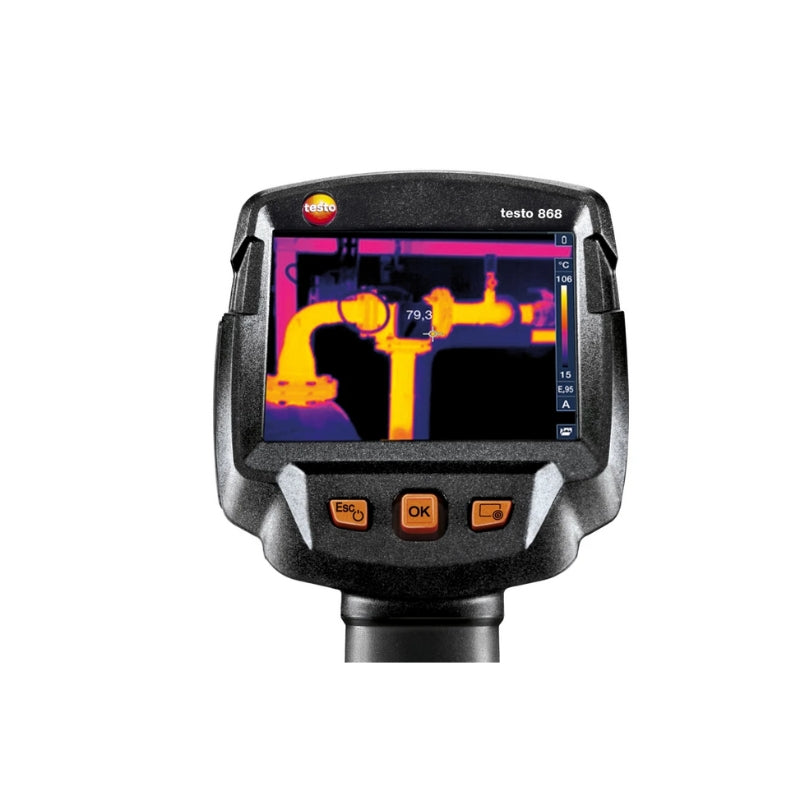

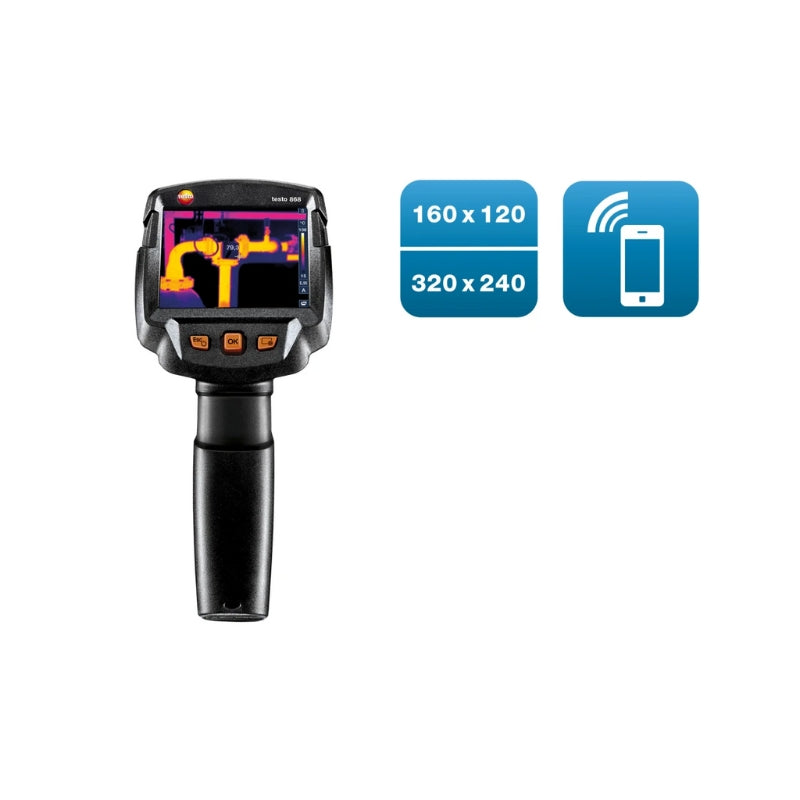

The testo 868 is a smart, professional thermal imager designed to make thermography faster, easier, and more connected. With an infrared resolution of 160 × 120 pixels (enhanced to 320 × 240 pixels via SuperResolution), impressive thermal sensitivity of <0.08°C, and a broad temperature range from –30°C to +650°C, the testo 868 delivers outstanding image quality for demanding field use.

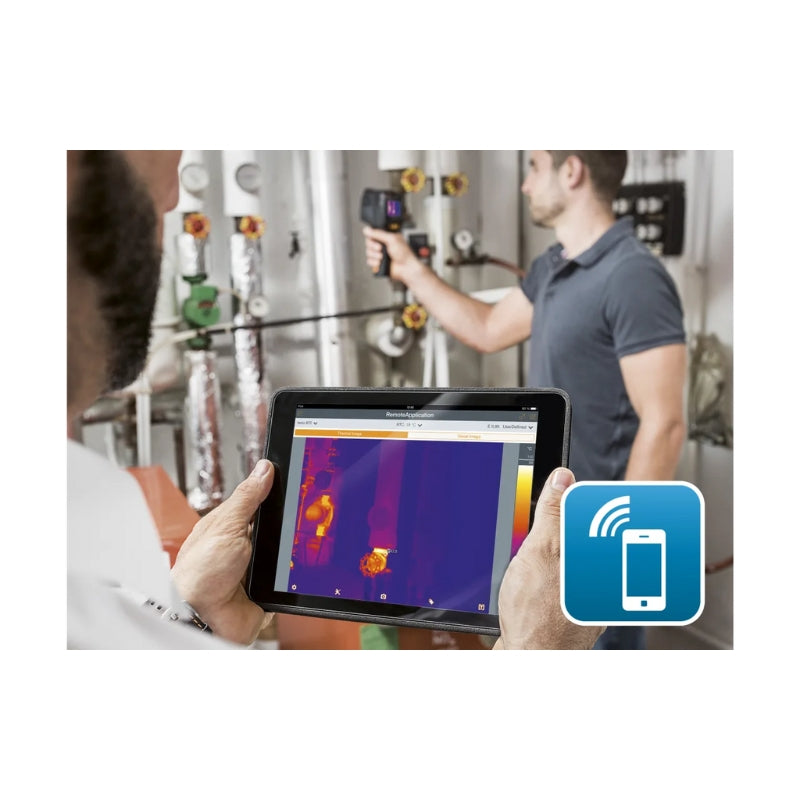

Integrated WiFi connectivity allows you to pair the device with the testo Thermography App, enabling onsite reporting, online image storage, and use of your smartphone/tablet as a second display or remote control. Built-in technologies such as testo ε-Assist, testo ScaleAssist, automatic hot/cold spot detection, and the IFOV warner ensure objective, error-free thermal images every time.

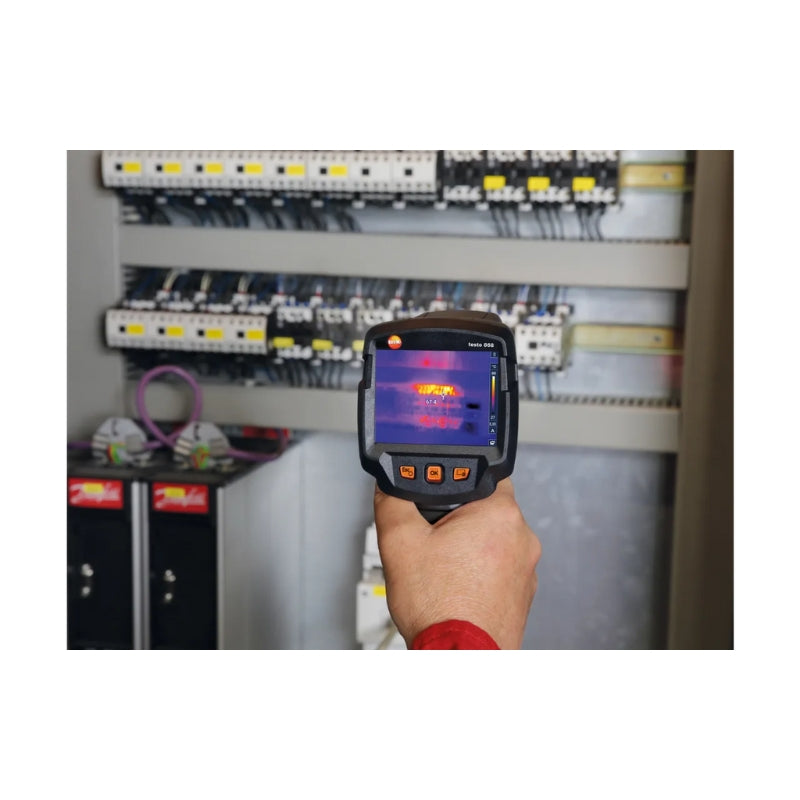

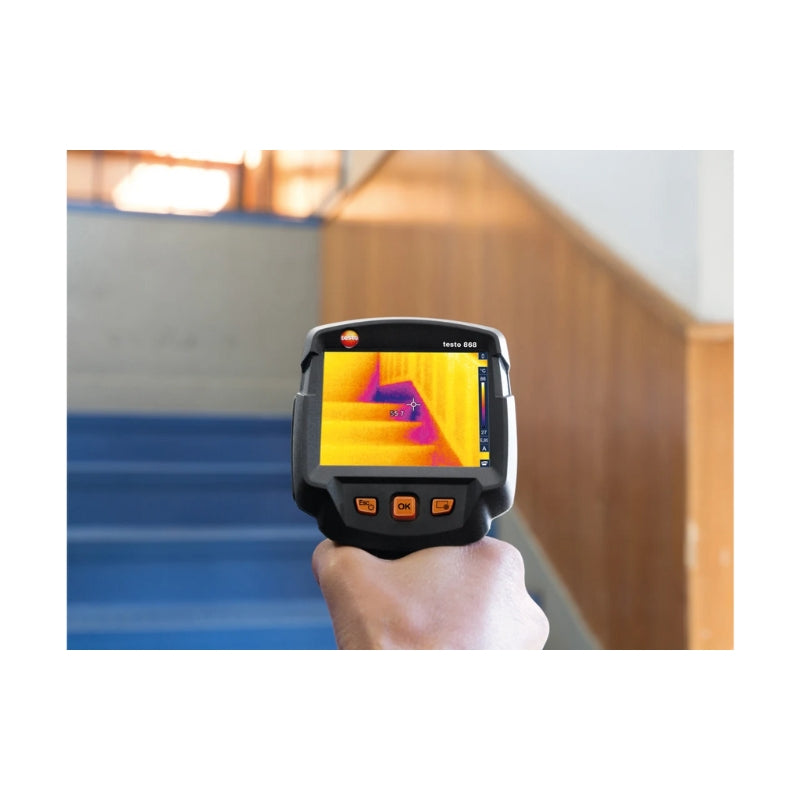

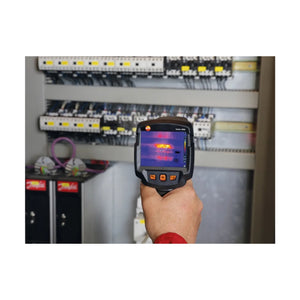

The embedded digital camera simultaneously captures real images, making documentation and reporting seamless. Rugged, intuitive, and highly accurate, the testo 868 is perfect for HVAC professionals, industrial maintenance, and building diagnostics.
| Parameter | Specification |
|---|---|
| Product No. | 0560 8681 |
| IR Resolution | 160 × 120 pixels |
| SuperResolution | 320 × 240 pixels (IFOV 2.1 mrad) |
| Standard Lens | 31° × 23° |
| Field of View | 31° × 23° |
| Focus | Fixed |
| Minimum Focus Distance (IR) | <0.5 m |
| IFOV | 3.4 mrad |
| Image Refresh Rate | 9 Hz |
| Thermal Sensitivity | <0.08°C (80 mK) |
| Spectral Range | 7.5–14 µm |
| Digital Camera | 5 MP |
| Display | 3.5" TFT QVGA (320 × 240 px) |
| Display Modes | IR image / Real image |
| Accuracy | ±2°C / ±2% of mv |
| Emissivity | 0.01 to 1.00 |
| Measuring Ranges | –30 to +100°C; 0 to +650°C |
| Reflected Temperature | Manual |
| testo ε-Assist | Included |
| testo ScaleAssist | Included |
| IFOV Warner | Included |
| Analysis Functions | Mean point, hot/cold spot, Delta T |
| Connectivity | WLAN / WiFi for Thermography App |
| Video Streaming | Via wired USB or WLAN |
| Interfaces | USB 2.0 Micro-B, WLAN |
| Image Storage | .bmt; export .bmp, .png, .csv, .xls, .jpg |
| Internal Memory | 2.8 GB |
| Battery Type | Fast-charging Li-ion, replaceable |
| Operating Time | 4 hours |
| Mains Operation | Yes |
| Protection Class | IP54 |
| Vibration Resistance | 2G |
| Air Humidity | 20–80% RH (non-condensing) |
| Storage Temperature | –30 to +60°C |
| Operating Temperature | –15 to +50°C |
| Housing Material | PC-ABS |
| Dimensions | 219 × 96 × 95 mm |
| Weight | 510 g |
| System Requirements (PC Software) | Windows 11, 10, 8.1 |
| Product Colour | Black |
| Display Lighting | Bright / Normal / Dark |
| Compliance | EMC: 2014/30/EU; RED: 2014/53/EU |
Data sheet testo 868
Product brochure testo 865-868-871-872
Information according to Reg. (EU) 2023/2854 (DataAct)
Information according to Reg. (EU) 2023/2854 (DataAct)
EU declaration of conformity testo 868
Instruction manual testo 868 (for devices with Firmware from 1.23x)
Instruction manual testo 868 (for devices with Firmware up to 1.14x)
Short manual testo 865-872
Quickstart Guide (testo 865|testo 868|testo 871|testo 872)
