SKU: 0560 8721
![]()
The testo 872 is a high-performance thermal imager engineered for professional industrial, electrical, and building thermography. With an infrared resolution of 320 × 240 pixels—extendable to 640 × 480 pixels via integrated SuperResolution Technology—and an exceptional thermal sensitivity of 0.05°C, it captures incredibly detailed and accurate thermal images.
Designed for smart, connected workflows, the testo 872 wirelessly integrates measurement data from the testo 770-3 clamp meter and testo 605i thermohygrometer (sold separately) via Bluetooth. In combination with the free testo Thermography App, users can generate reports on site, operate the imager remotely, store images online, and use mobile devices as a second display.
The device includes advanced diagnostic tools such as testo ε-Assist, testo ScaleAssist, IFOV warner, hot/cold spot detection, and a built-in laser marker that is also shown as a precise measurement point in the thermal image.
| Parameter | Specification |
|---|---|
| Product No. | 0560 8721 |
| IR Resolution | 320 × 240 pixels |
| SuperResolution | 640 × 480 pixels (IFOV: 1.3 mrad) |
| Standard Lens | 42° × 30° |
| Field of View | 42° × 30° |
| Focus | Fixed |
| Minimum Focus Distance | <0.5 m |
| IFOV | 2.3 mrad |
| Image Refresh Rate | 9 Hz |
| Thermal Sensitivity | <0.05°C (50 mK) |
| Spectral Range | 7.5–14 µm |
| Digital Camera | 5 MP |
| Display | 3.5" TFT QVGA (320 × 240 px) |
| Display Options | IR / Real Image |
| Digital Zoom | 2×, 4× |
| Accuracy | ±2°C / ±2% of mv |
| Emissivity | 0.01 to 1 |
| Measuring Ranges | –30 to +100°C; 0 to +650°C |
| Reflected Temperature | Manual |
| testo ε-Assist | Included |
| testo ScaleAssist | Included |
| IFOV Warner | Included |
| Analysis Functions | Mean point, hot/cold spot, Delta T, area min/max |
| Solar Mode | Manual input |
| Electrical Mode | Manual input of current/voltage/power |
| Humidity Mode | Included |
| Bluetooth Integration | testo 605i & testo 770-3 (optional) |
| WLAN Connectivity | Thermography App wireless module BT/WLAN |
| Video Streaming | Via WLAN with App |
| Interfaces | USB 2.0 Micro-B, Bluetooth, WLAN |

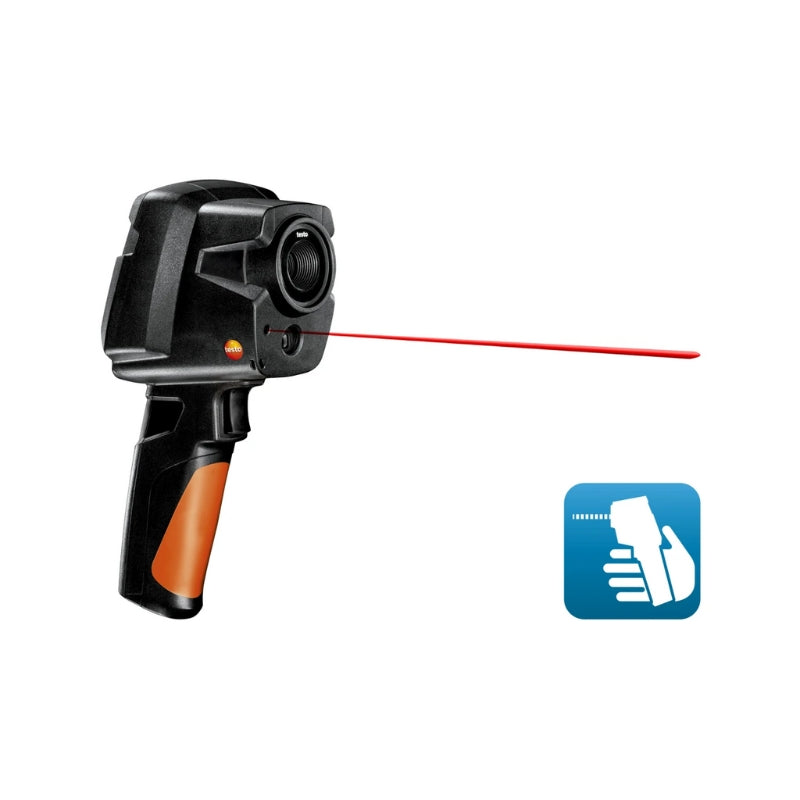

| Laser Marker | Included |
| Image Storage | .bmt; .jpg; export .bmp, .jpg, .png, .csv, .xls |
| Internal Memory | 2.8 GB |
| Battery Type | Fast-charging Li-ion, replaceable |
| Operating Time | 4 h |
| Mains Operation | Yes |
| Charging Options | In instrument / optional charger |
| Protection Class | IP54 |
| Vibration Resistance | 2G |
| Air Humidity | 20–80% RH non-condensing |
| Storage Temperature | –30 to +60°C |
| Operating Temperature | –15 to +50°C |
| Housing Material | PC-ABS |
| Dimensions | 219 × 96 × 95 mm |
| Weight | 510 g |
| PC Software Requirements | Windows 11, 10, 8.1 |
| Product Colour | Black |
| Display Lighting | Bright / Normal / Dark |
| Compliance | RED 2014/53/EU; EMC 2014/30/EU |
Data sheet testo 872
Product brochure testo 865-868-871-872
Information according to Reg. (EU) 2023/2854 (DataAct)
Information according to Reg. (EU) 2023/2854 (DataAct)
EU declaration of conformity testo 872
Instruction manual testo 872 (for devices with Firmware from 1.23x)
Instruction manual testo 872 (for devices with Firmware up to 1.14x)
Short manual testo 865-872
Quickstart Guide (testo 865|testo 868|testo 871|testo 872)
