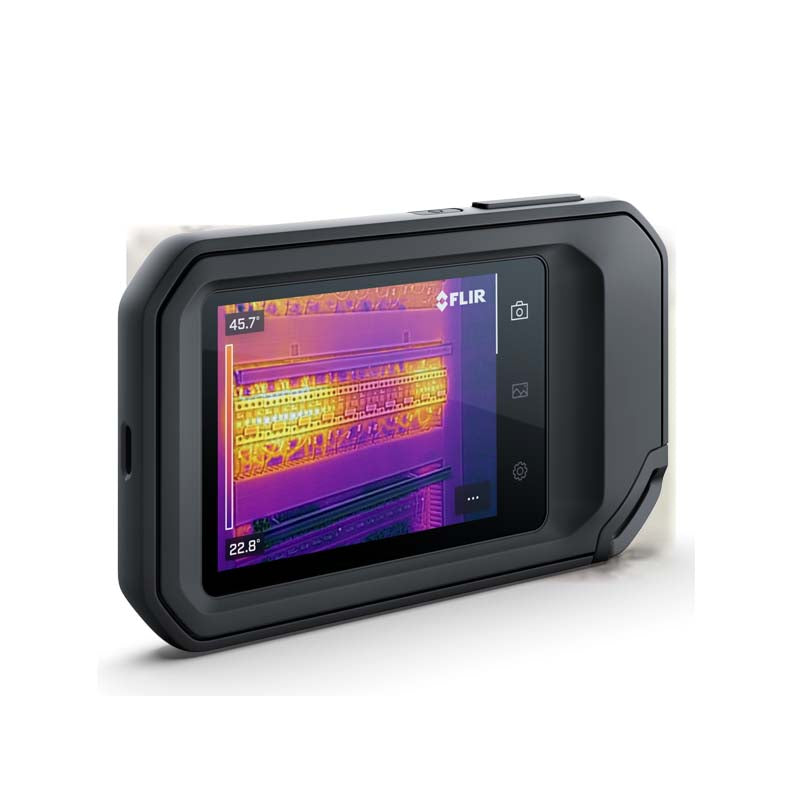

FLIR C8 Compact Thermal Camera – 320×240 MSX 18801-0101
SKU: 18801-0101
ra
$1,390.00
$1,395.00 Excl. GST
$1,529.00
$1,534.50 Incl. GST
✔
Free Shipping
FLIR C8 Compact Thermal Camera – 320×240 MSX 18801-0101
FLIR C8 Compact Thermal Camera - Overview
The FLIR C8 Compact Thermal Camera is a high-performance, pocket-sized thermal imager designed for fast, accurate diagnostics in building inspections, electrical, HVAC, plumbing, and more. With a 320 × 240 true thermal sensor, MSX® image enhancement, and seamless cloud connectivity, the C8 delivers sharp, professional images you can trust.
FLIR C8 Compact Thermal Camera - Key Features & Benefits

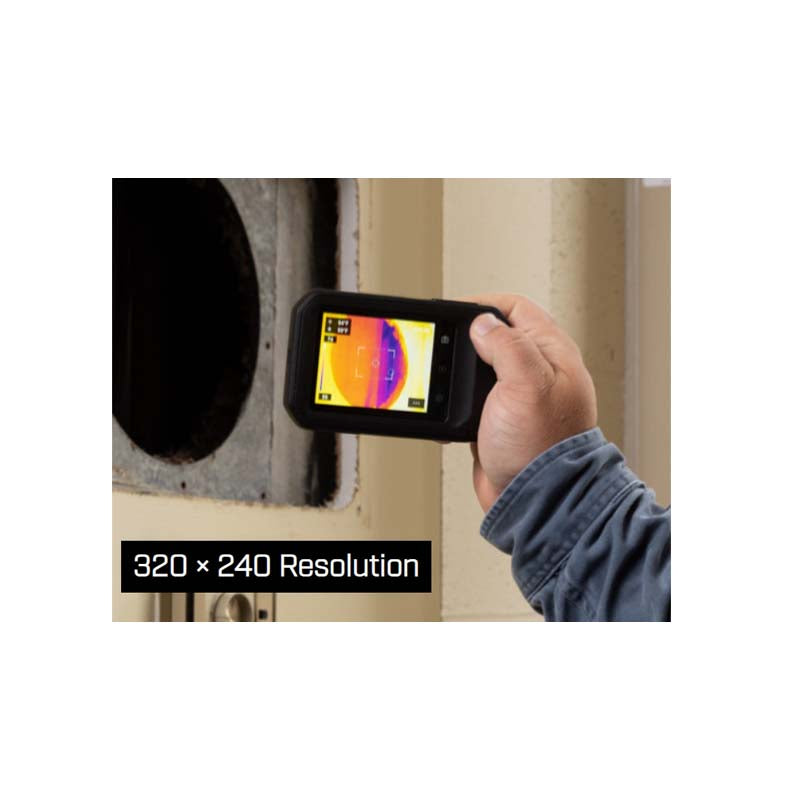

- 320 × 240 thermal resolution for precise temperature detection and diagnostics

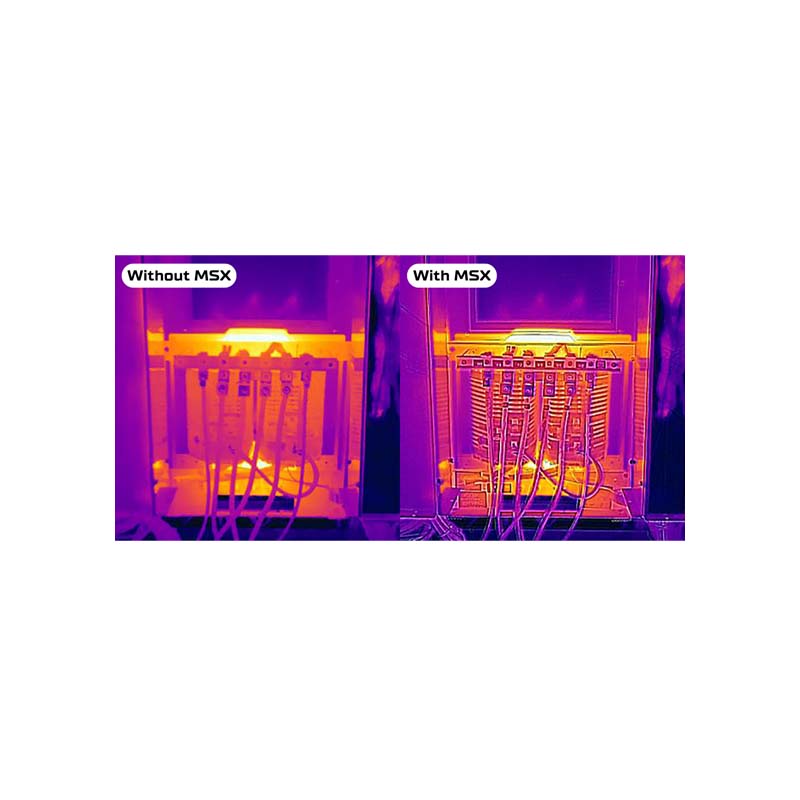

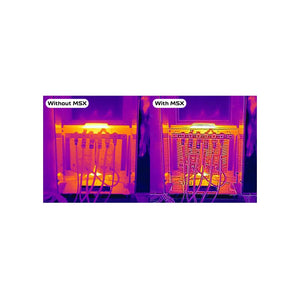

- MSX® Multi-Spectral Dynamic Imaging — overlay visible-light detail onto thermal images in real time to provide context and clarity

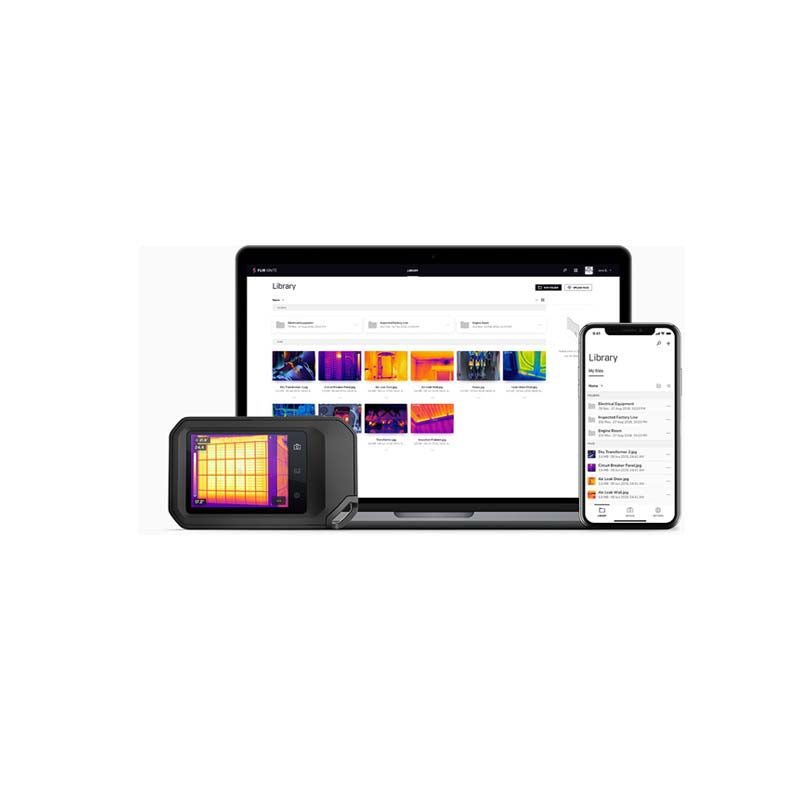

- Integrated FLIR Ignite™ cloud — instantly upload, organize, back up, and share your thermal images and reports
- 1-Touch Level/Span auto-adjust — get optimal contrast and clarity with a simple tap
- Built for rugged use — IP54-rated housing, drop-tested up to 2 m, suitable for tough field conditions

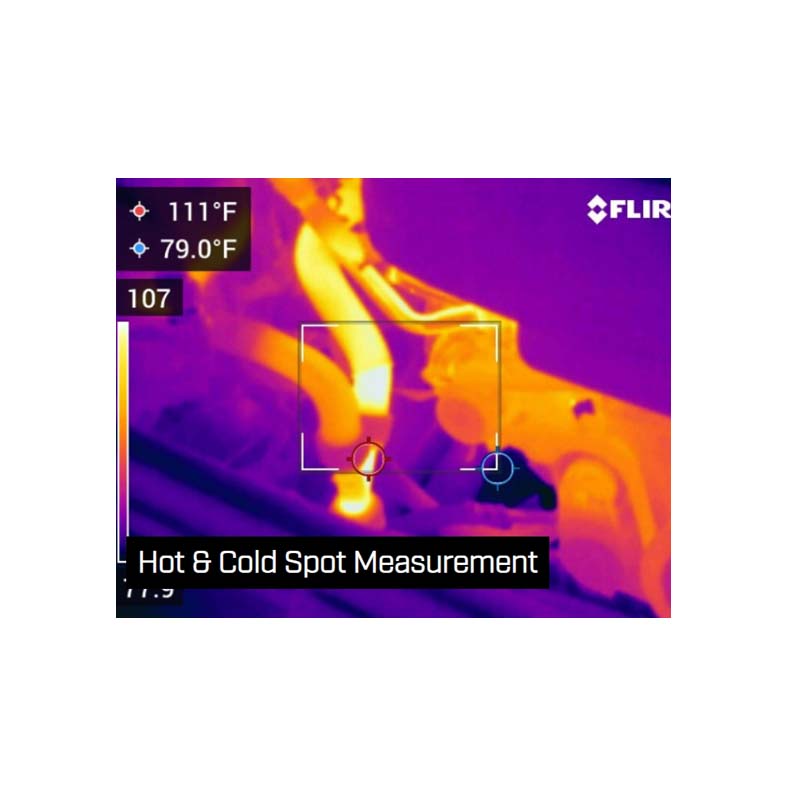

- Wide temperature range & measurement tools — from –20 °C to 450 °C, with spot, box, and isotherm modes

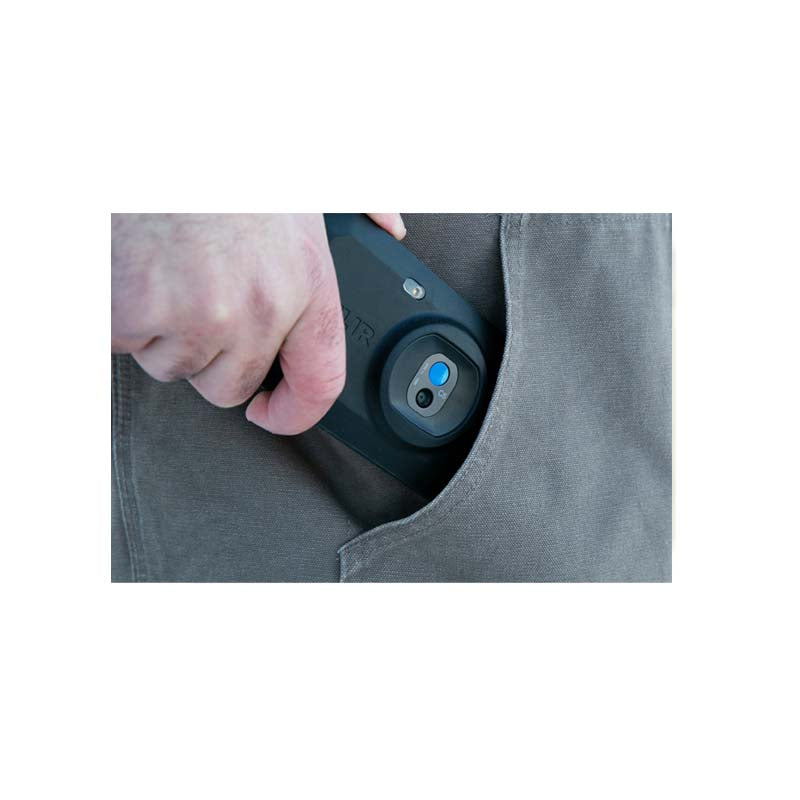

- Compact & portable — weighs just 0.2 kg, with a 3.5" touchscreen and built-in LED flashlight
FLIR C8 Compact Thermal Camera - What’s Included
- FLIR C8 camera unit
- USB Type-C cable
- Wrist strap / lanyard

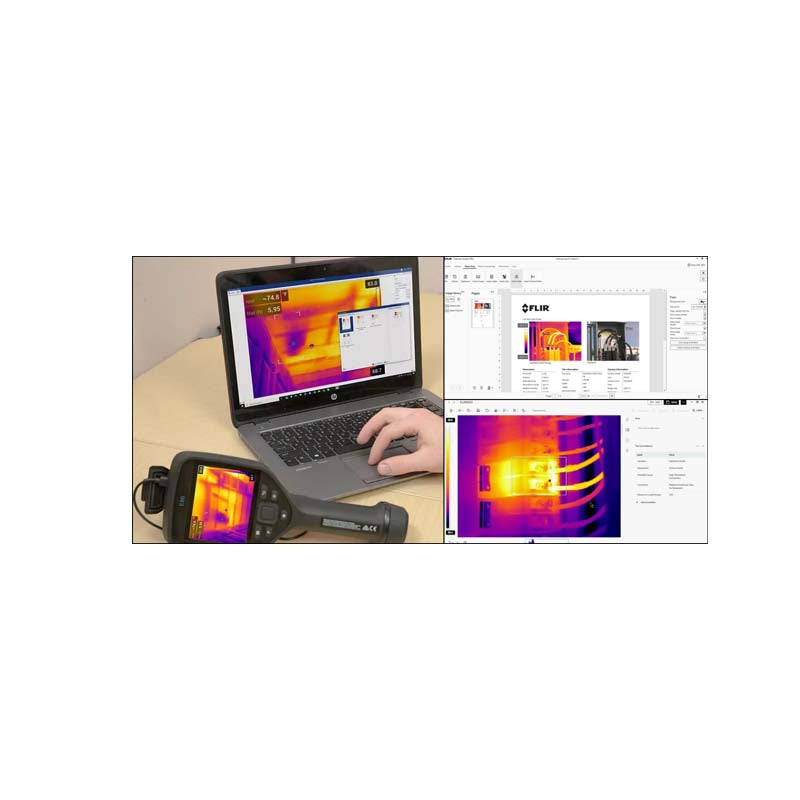

- FLIR Thermal Studio Starter software
- Documentation & user guides
- (Optional accessories and calibration services available)
FLIR C8 Compact Thermal Camera is ideal For
- Building inspection & energy audits
- Electrical fault detection & preventative maintenance
- HVAC & refrigeration systems diagnostics
- Plumbing & moisture intrusion tracking
- Facilities & infrastructure management
- Contractors, engineers, tradespeople, and property inspectors
FLIR C8 Compact Thermal Camera - Specifications
| Category | Specification |
|---|---|
| Imaging & Optical Data | |
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity / NETD | <50 mK |
| Field of View (FOV) | 35° × 27° |
| Minimum Focus Distance | 0.4 m (1.3 ft) |
| Spatial Resolution (IFOV) | 2.0 mrad/pixel |
| F-number | 1.4 |
| Image Frequency | 9 Hz |
| Focus | Focus free |
| Digital Zoom | Pinch zoom 1× to 4× (continuous) |
| Detector Data | |
| Detector Type | Focal plane array, uncooled microbolometer |
| Spectral Range | 7.5–13 µm |
| Detector Pitch | 12 µm |
| Image Presentation | |
| Display Resolution | 640 × 480 pixels |
| Screen Size | 3.5 in |
| Aspect Ratio | 4:3 |
| Auto Orientation | Yes |
| Touch Screen | Capacitive |
| Display Technology | IPS |
| Image Adjustment | Auto / Manual / 1-Touch level & span |
| Image Modes | |
| Modes | Infrared / Visual / MSX / Picture-in-Picture |
| Gallery | Thumbnails, custom folder structure |
| Measurement | |
| Temperature Range | –20°C to 450°C (–4°F to 842°F) |
| Accuracy | 0–100°C: ±2°C; 100–450°C: ±2% |
| Measurement Analysis | |
| Functions | Spot / Box (max & min) / Isotherm |
| Corrections | Emissivity presets & custom / Reflected temp / Atmospheric compensation |
| Image Annotations | |
| Text | On-screen soft keyboard; auto-prompt on save |
| Video Streaming | |
| Non-Radiometric Streaming | Yes – MSX, Thermal, Visual, PiP |
| USB Video Class | Colorized, uncompressed w/ overlay, 9 Hz |
| Digital Camera | |
| Resolution | 5 MP |
| Focus | Fixed |
| Field of View | 71.5° × 56° (84° diagonal) |
| Video Lamp | Yes |
| Data Communication Interfaces | |
| Wi-Fi | 802.11 a/b/g/n (2.4 & 5 GHz) |
| USB | USB 2.0, Type-C |
| Bluetooth | Yes |
| Power System | |
| Battery Type | Built-in rechargeable lithium-ion |
| Operating Time | 3 hours |
| Charging | USB-C, 2 hours |
| Power Management | Adjustable standby & auto shut-down |
| Storage of Images | |
| Storage Media | Built-in |
| Capacity | >5000 image sets |
| File Format | JPEG with 14-bit measurement data |
| Environmental Data | |
| Operating Temp | –10°C to 50°C (14°F to 122°F) |
| Storage Temp | –40°C to 70°C (–40°F to 158°F) |
| Humidity | IEC 60068-2-30 / 95% RH, 25–40°C, 2 cycles |
| Relative Humidity | 95% RH, non-condensing |
| Encapsulation | |
| Camera Housing & Lens | IP54 (IEC 60529) |
| Vibration | |
| Resistance | 2 g (IEC 60068-2-6) |
| Drop | |
| Design | Designed for 2 m (6.56 ft) |
| Environmental Safety | |
| Compliance | REACH, RoHS2, WEEE, Proposition 65 |
| Physical Data | |
| Weight | 0.2 kg (0.44 lb) |
| Dimensions | 138 × 84 × 34 mm (5.4 × 3.3 × 1.3 in) |
| Tripod Mounting | UNC ¼”-20 |
| Housing Material | PC + ABS, TPE, Aluminum |
| Packaging Contents | FLIR C8, documentation, FLIR Thermal Studio Starter, wrist strap lanyard, USB cable, pouch |
| Ordering Information | |
| Model | 18801-0101 |
| Description | Compact 320 × 240 Thermal Camera with MSX & FLIR Ignite |
| Accessories | |
| T911940ACC | USB 2.0 A to USB Type-C cable, 1.0 m |
| T199871 | Traceable Calibration for C5 |
| T300083 | FLIR Thermal Studio Pro – Perpetual license |
| T300341 | FLIR Thermal Studio Standard – 1 Year Subscription |
| T300258 | FLIR Thermal Studio Standard – Perpetual license |
FLIR C8 Compact Thermal Camera - Datasheet
FLIR C8 Compact Thermal Camera - Brochure
