Seaward PAC3760 DL Appliance Tester with Tag Printing System
Including GST
In Stock
$2,800.00
FREE SHIPPING ON ORDERS OVER $250 AUD
Call NowSeaward PAC3760 DL Appliance Tester with Tag Printing System

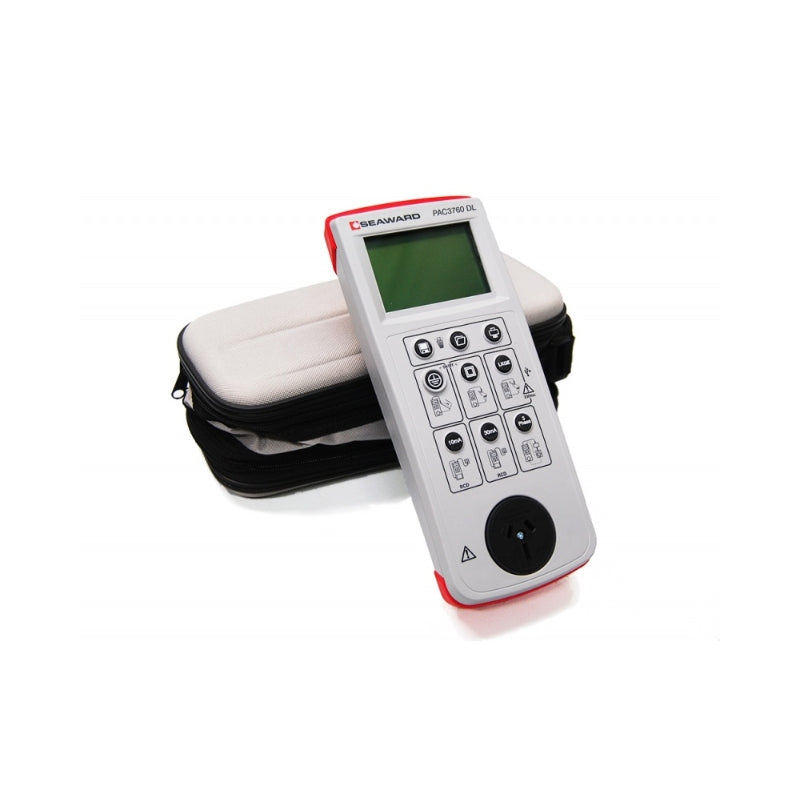

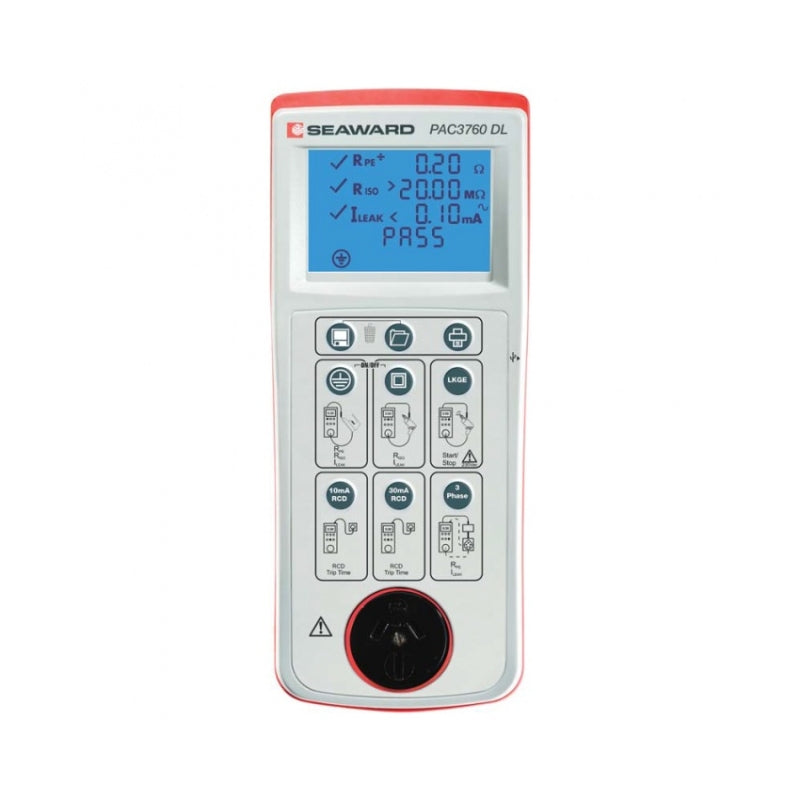

Seaward PAC3760 DL Appliance Tester with Tag Printing System
The Seaward PAC3760 DL is based on the PAC3760 series, Australia's most popular and easiest to use appliance testers. The PAC3760 DL includes download of test results to any spreadsheet or database program - no special software required!

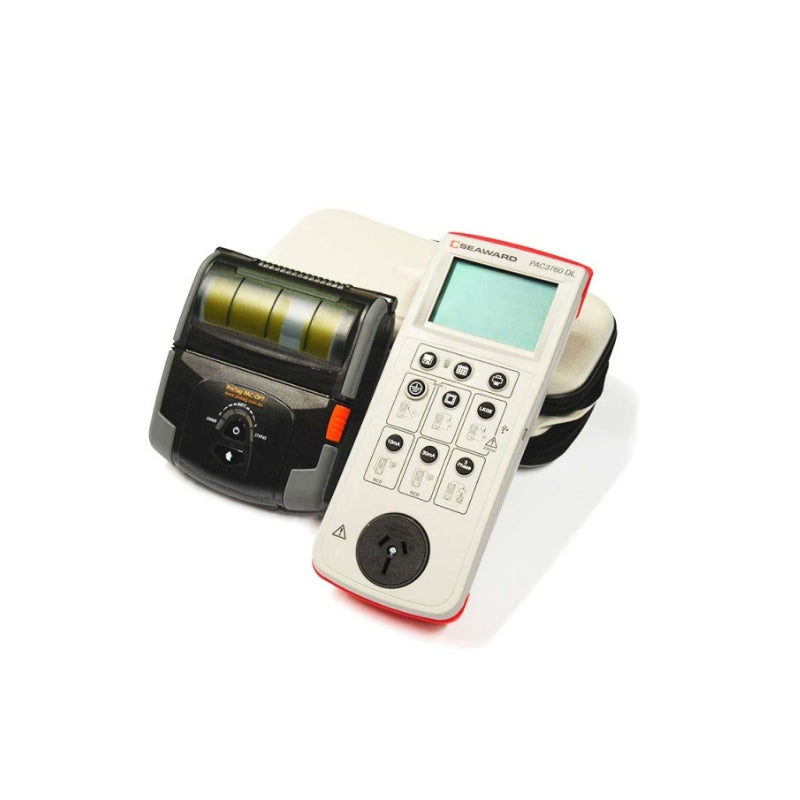

The PAC-OPT's unique "Plug N Print" operation simply requires connection to the PAC3760 DL via serial cable, conduct your test and press the print button to output your test tag. No time consuming logo set-up required as the PAC-OPT prints a generic test tag.
By adding these two together, you'll be able to print test tags instantly.
PAC3760 DL Features
- Single push button operation
- Battery & mains powered
- Pass/Fail indication and actual readings
- Senses an IEC or extension lead and conducts a polarity test
- Detects if the appliance under test is not switched "On"
- 10mA & 30mA portable and fixed RCD trip time tests
- In-Built isolation transformer
- Stores 999 test results and downloads CSV file
- "Plug N Print" test tag printing - optional PAC-OPT test tag printer
- 3 phase leakage test - optional 3 phase adaptor required
Product Specs Seaward PAC3760
| PAC3760DL | Specifications |
|---|---|
| Display | Bright LCD |
| Indication | Pass/Fail, Measurement Value |
| Operation | Pass/Fail, Measurement Value |
| Enclosure | Hand-held, IP Rating IP40 |
| Leads | Earth Bond, IEC, Mains Supply, USB Download & Serial Printer |
| Interfaces | USB & Serial |
| On-Board Memory | 999 Test Results |
| Carry Case | Deluxe Padded |
| Dimensions(LxWxH) | 265 x 110 x 55mm |
| Weight | 0.8kg |
| Overvoltage Category | CAT II 300V |
| Electrical Safety | IEC61010-1:2001, IEC61326:2005 |
Product Specs Seaward PAC3760
| PAC3760DL | Tests Performed |
|---|---|
| Polarity | Yes |
| Earth Continuity | 200mA, 1ohm |
| Insulation Resistance | 500V DC, 1Mohm |
| Class I Leakage Current | 5mA |
| Class II Leakage Current | 1mA |
| MOV Devices Class I Leakage Current | 5mA |
| MOV Devices Class II Leakage Current | 1mA |
| Lead/Cord Extension Sets | 1mA |
| 10mA RCD (with in-built isolation transformer) | 40ms |
| 30mA RCD (with in-built isolation transformer) | 300ms |
| Optional 3 Phase Leakage Test | 5mA |
Product Specs Seaward PAC Test Tag Printer
| Seaward | PAC-OPT Test Tag Printer |
|---|---|
| Interface | Serial Cable |
| Print Type | Thermal Direct |
| Test Tags | OPT OPTIMA Type, General Indoor & Outdoor |
ProTag Systems Comparison Chart Seaward
Please see our ProTag systems comparison chart. This is a comparison between the Seaward PT125 EL, ProTag PAC3760 DL, ProTag PrimeTest PRO Kit, ProTag Elite-PLUS. CLICK HERE
