SKU: 0560 8621
![]()

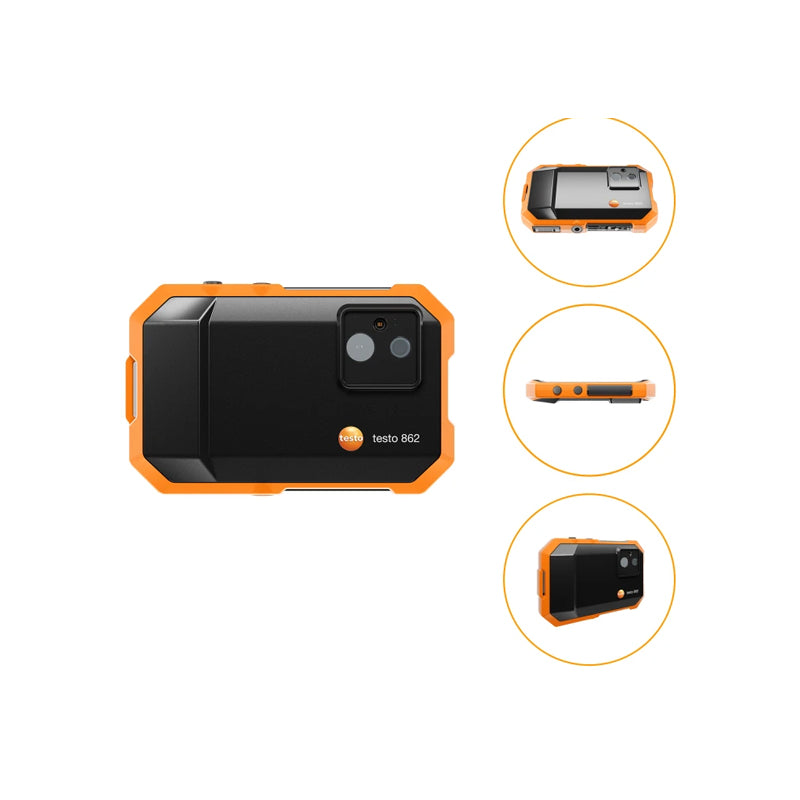

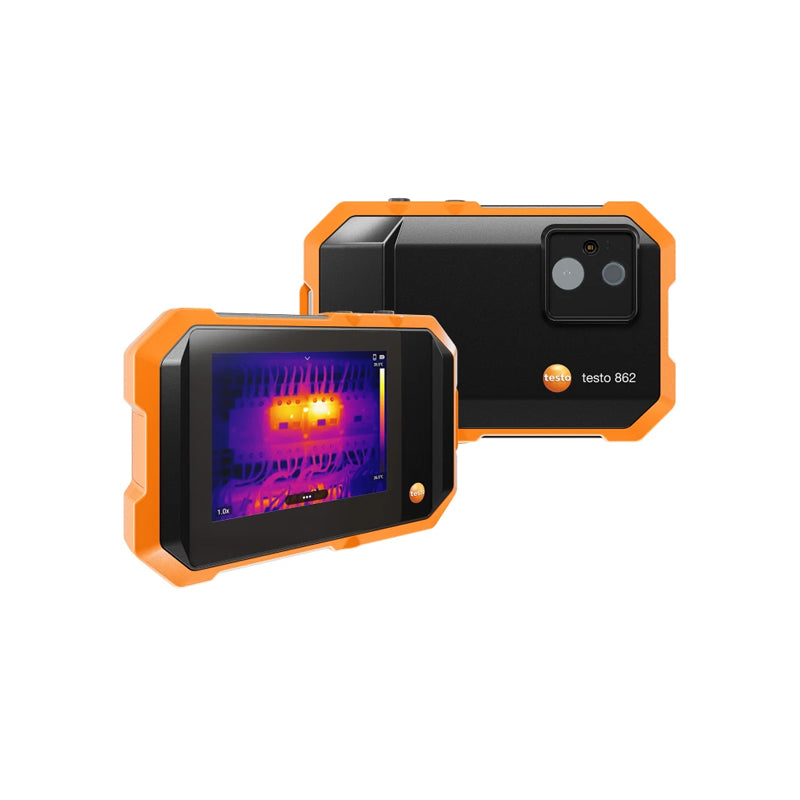

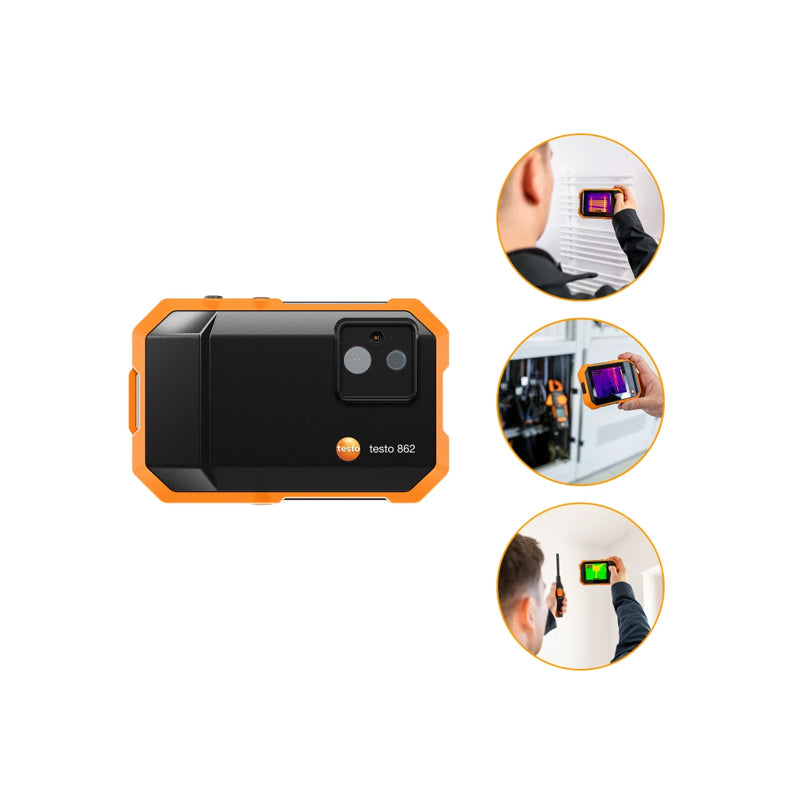

The Testo 862-1 Pocket-Sized Thermal Imager (0560 8621) is a compact and rugged thermal imaging camera designed for fast and reliable temperature inspections across HVAC/R, building diagnostics, facility management and industrial maintenance applications.
Featuring a 160 × 120 pixel infrared detector and thermal sensitivity of < 50 mK, the testo 862-1 produces detailed thermal images that make temperature differences and potential faults easy to identify. Fusion technology adds visual context to thermal images, helping users quickly interpret inspection results.

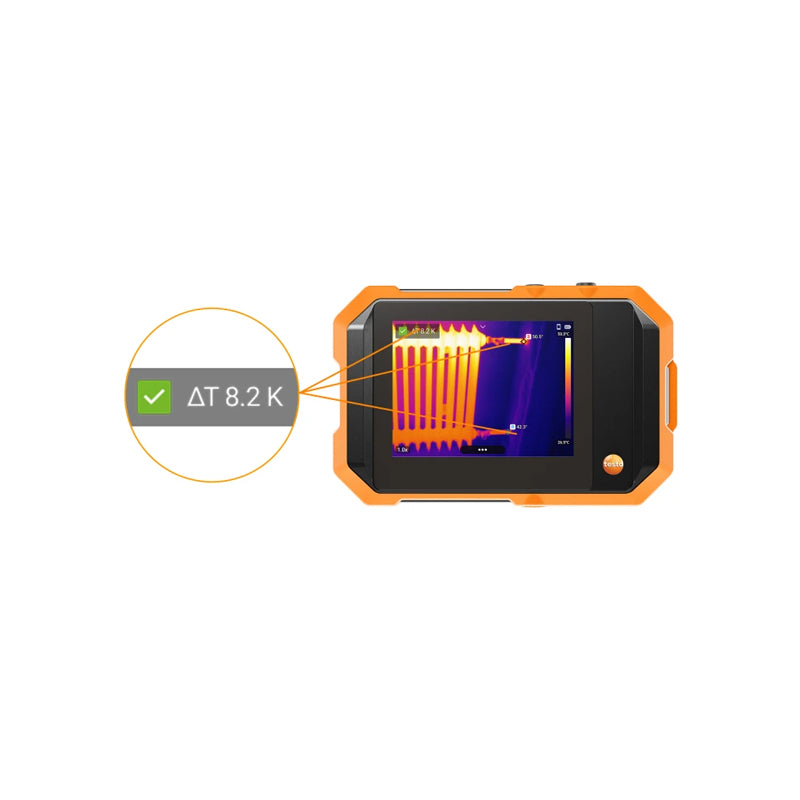

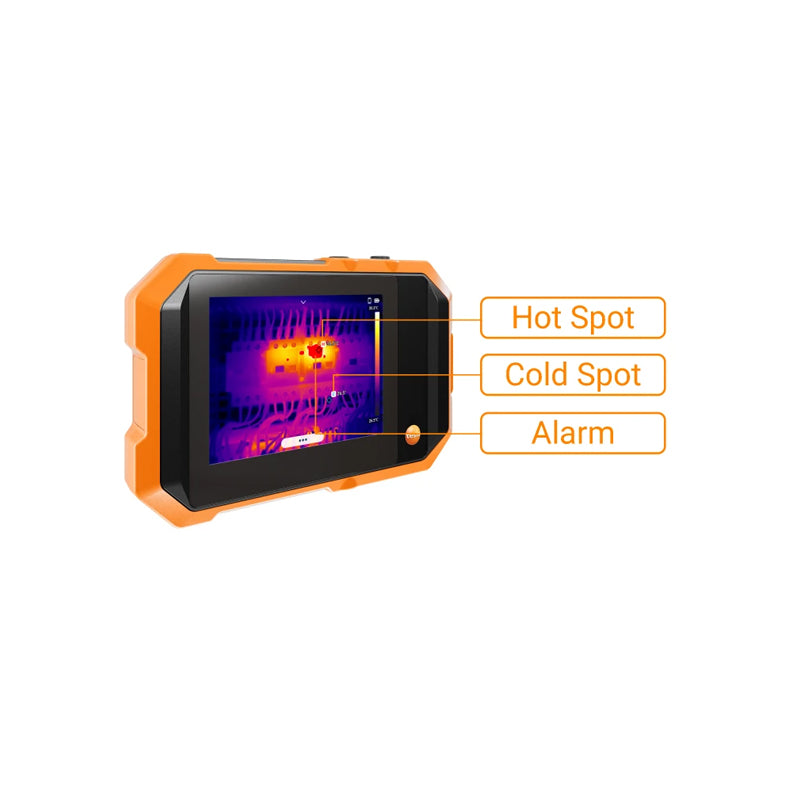

Smart diagnostic functions including hot/cold spot detection, automatic Delta T calculation, alarm functions and intelligent mould analysis help streamline everyday inspection work. The dedicated DeltaHeat mode provides instant feedback for assessing radiator performance and identifying issues such as uneven heat distribution.

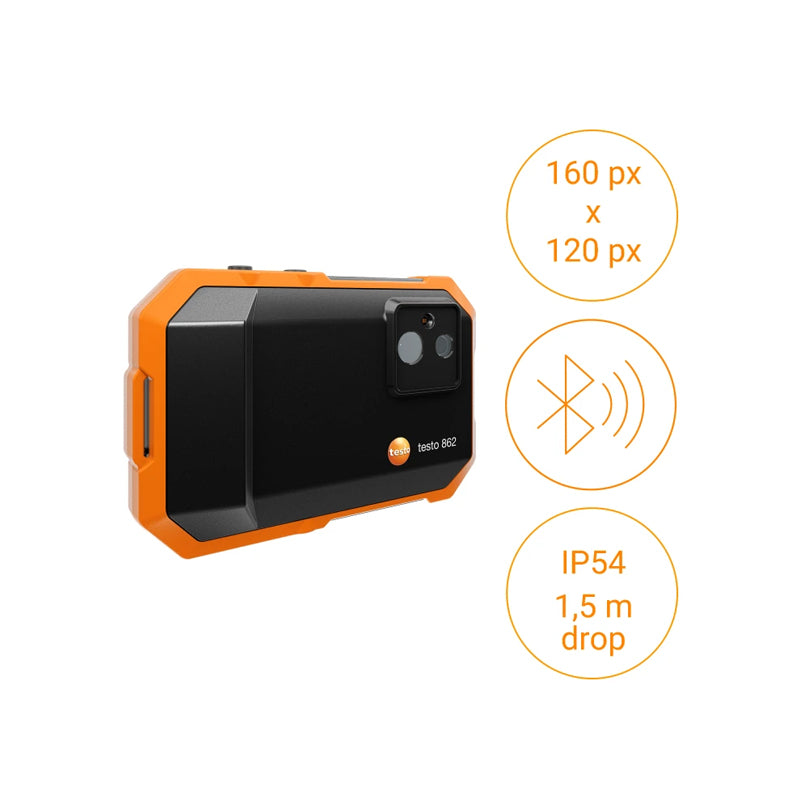

For more comprehensive measurements and reporting, the testo 862-1 can connect wirelessly with compatible instruments including the testo 605i thermohygrometer and testo 770-3 clamp meter. Its pocket-sized construction, IP54 protection rating and 1.5 m drop resistance make it well suited to regular professional field use.
| Specification | Details |
|---|---|
| Product Number | 0560 8621 |
| Infrared Resolution | 160 × 120 pixels |
| Thermal Sensitivity (NETD) | < 50 mK @ +25°C |
| Field of View (FOV) | 40° × 30° |
| Focus | Fixed focus |
| Minimum IR Focus Distance | 0.25 m |
| Geometric Resolution (IFOV) | 4.62 mrad |
| Image Refresh Rate | 25 Hz |
| Spectral Range | 8 to 14 µm |
| Visual Camera Resolution | 2 MP |
| Minimum Visual Focus Distance | 0.2 m |
| Protection Class | IP54 |
| Drop Resistance | Up to 1.5 m |
| Connectivity | Wireless connectivity with compatible Testo instruments |
| Compatible Instruments | testo 605i thermohygrometer, testo 770-3 clamp meter |
| Software | IRSoft; testo Smart App availability expected in 2027 via free update |
Testo 862-1 Thermal Imaging Camera Datasheet
Testo 862-1 Thermal Imaging Camera Instruction Manual
Testo 862-1 Quick Start Guide
